Whenever it comes time that you want to build a DIY product, you really must understand the bill of materials first. For the iSpindel, it just was not very straight forward. There’s nobody really explaining what everything is and how it’s all used. The documentation for this just doesn’t make it all very clear. So I’ll do my best explain what each electronic part is, what it does, and where you can find it.
The brains of the whole operation is the ESP8266 chip. This tiny little chip packs of a lot of cool stuff in it. But unless you’re an electrical engineer, you don’t want to go out and buy this chip and build a circuit around it. You want all of that stuff done for you. The German folks who first put together the iSpindel were fans of the Wemos D1 Mini. The Wemos D1 Mini is a cool little single-board micro-controller that has all of the various things you need to interact with the ESP8266 chip.
But the D1 Mini doesn’t have the necessary sensors to give you the information you need to take all of your measurements. For that, you need to add a temperature sensor and a gyroscope.
For the temperature sensor, that’s easy. There’s a very popular temperature sensor called the DS18B20. This little guy is super cheap and readily available anywhere.
For the gyroscope our friends in Germany are recommending the MPU-6050 which is a very popular chip. But much like the ESP8266, you don’t want to buy just the chip. You want to buy a daughter board (often called a shield) that has all of the various control circuitry built into it. The GY-521 is a great daughter board for this purpose.

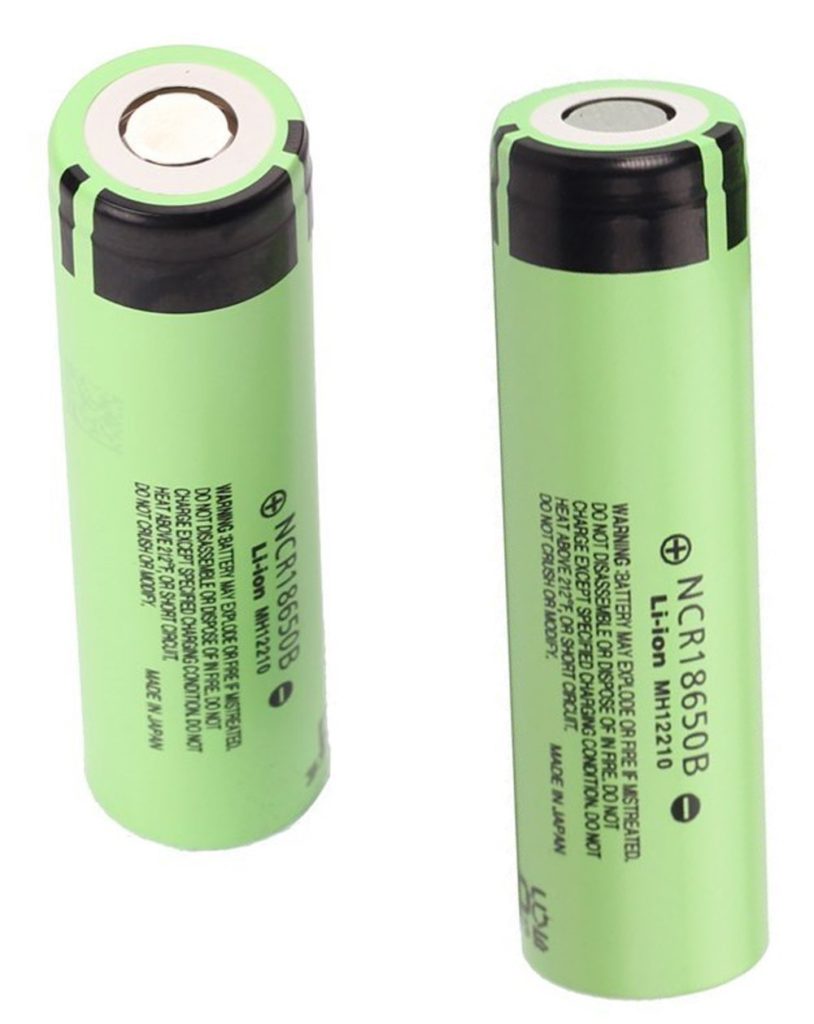

Once you’ve got those 3 main pieces of silicon (micro-controller, temp sensor, gyro), it’s time to power these bad boys. That’s where your Panasonic 18650 battery comes in. This is a hefty, lithium-ion rechargeable battery, packing 3400 mAh into one tiny package.
In order to control this battery, and be able to recharge it, you will want to use some kind of lithium-ion battery controller. Again, our German friends to the rescue. They recommend the TP4056 controller. This is a very popular DIY battery controller module that plays nicely with the Panasonic 18650 battery and the Wemos D1 Mini.
So now we have our silicon, we have our power, it’s time to wire all of these things together and give them an on/off switch. In order to do that properly, you’re going to want a few other electronic components. A solderable breadboard, an on/off switch, a 470 ohm resistor, a 4.7k ohm resistor, and a 230k ohm resistor. If you’re not familiar with resistors, ohm is the unit of measurement and “k” means “thousand”. So when you say 4.7k what you really mean is 4,700. When you say 230k what you really mean is 230,000 and so on.
There are all kinds of switches out there. They’re all dirt cheap and they all usually work really well. That being said, because they’re so dirt cheap, it’s nearly impossible to find just 1 of these at a reasonable price outside of a large electronics distributor’s website. So if you order these from the link I recommend, you’re going to end up with 50 of these. Better get creative with the other 49 of them.
There are a bunch of various solderable breadboards out there, but you’ll probably want one that is designed for the Wemos D1 Mini. It’ll just make your life a little easier when you solder all of these things together.
For the resistors, you could buy each of these resistors individually, but usually you’ll spend just as much, if not more, for shipping these things than if you just bought a kit with all kinds of resistors, so that’s what I’m recommending in my bill of materials.
Finally, you’ll also need a few various sized jumper wires. If you’re really desperate, you can just cut the leads off of some of the resistors you’re not using to make your own jumper wires, but in case you can afford another $10 kit, I’m recommending a popular kit from Amazon.
Once you’ve got all of your electronic parts, you can begin your assembly and write the code to the ESP8266 chip. More details on how to do all of that in an upcoming post, but for now, reference these couples of pages from the community.
I hope you found this information helpful. And finally without any further ado, here is your bill of materials, with all items available on Amazon.
Bill of Materials
- Micro-Controller (Wemos D1 Mini) – https://www.amazon.com/dp/B01MDRVUQU/
- Temperature Sensor (DS18B20) – https://www.amazon.com/dp/B077NYFYZS/
- Gyroscope (MPU-6050) – https://www.amazon.com/gp/product/B008BOPN40/
- Battery (Panasonic 18650) – https://www.amazon.com/gp/product/B01C4GFVN8/
- Battery Controller (TP4056) – https://www.amazon.com/gp/product/B00HJNX0DU/
- Switch – https://www.amazon.com/dp/B007QAJUUS/
- Wemos Compatible Breadboard – https://www.amazon.com/gp/product/B07G3227MD/
- Resistors – https://www.amazon.com/dp/B07CBV473M/
- Jumper Wires – https://www.amazon.com/dp/B07CJYSL2T/
